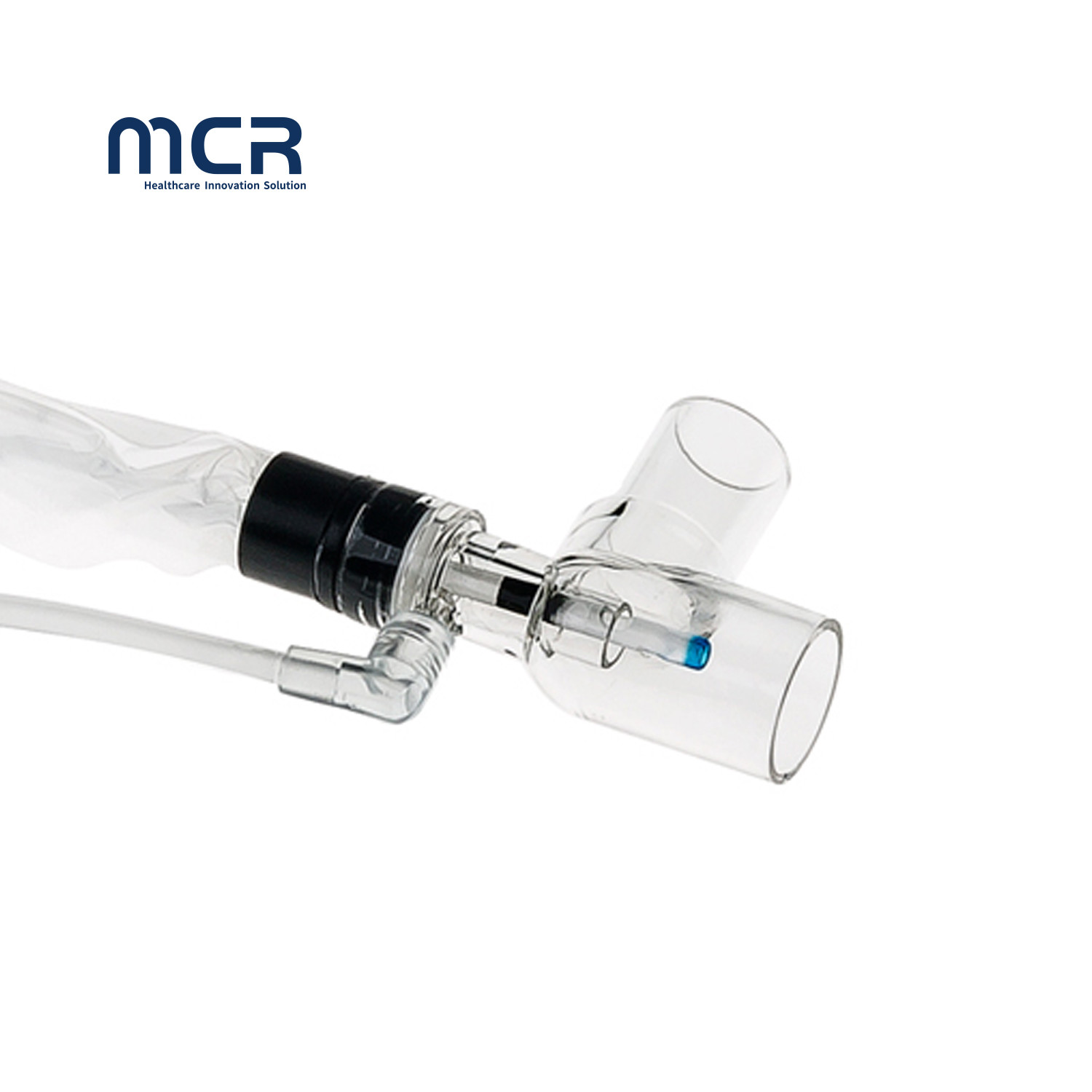

Simple Design L Shape Closed Circuit Suction Catheter for Neonates/Paediatrics
Ventilator associated pneumonia (VAP) is a hospital acquired disease, which can be efficiently fought
when applying certain strategies. It has a significant impact on patient’s health, length of stay and hospital cost.
Closed suction greatly reduces the potential for contamination from the bacteria which cause VAP.
Maintaining a closed breathing system is part of the ventilator care bundle, designed to reduce the incidence of
VAP in the hospital. Closed suction enables a clinician to clear the lungs of secretions whilst maintaining ventilation
and minimising contamination with the least possible disruption to the patient. features an ultra clear, new softer sleeve.
This allows the clinician greater feel when inserting the catheter with optimum visibility of blockage assessments.
Our suction control valve is responsive and allows for single handed control of the applied suction force.
The positive locking mechanism is designed to prevent suction being accidentally applied.
• Sealed by our patented “PEEP seal” technology
• One-way lavage port designed to prevent “sprayback”
• Hinged valve isolates catheter tip and helps prevent inadvertent lavage
• Turbulent cleaning chamber creates cleansing action, resulting in a cleaner catheter
• PEEP seal helps reduce PEEP loss and inadvertent lavage
Details
| Product Code | Size | Colour Code | Tube OD (mm) | Length of Tube (mm) |
| MC-24SL0 | Neonatal/24H/Tracheostomy | Grey | 5Fr(1.7mm) | 300mm |
| MC-24SL1 | Neonatal//24H/Tracheostomy | Light Green | 6Fr(1.95mm) | 300mm |
| MC-24SL2 | Pediatric/24H/Tracheostomy | Lvory | 7Fr(2.3mm) | 300mm |
| MC-24SL3 | Pediatric//24H/Tracheostomy | Light Blue | 8Fr(2.7mm) | 300mm |
| MC-24SL4 | Adult/24H/Tracheostomy | Black | 10Fr(3.35mm) | 300mm |
| MC-24SL5 | Adult/24H/Tracheostomy | White | 12Fr(4.05mm) | 300mm |
| MC-24SL6 | Adult/24H/Tracheostomy | Green | 14Fr(4.75mm) | 300mm |
| MC-24SL7 | Adult/24H/Tracheostomy | Orange | 16Fr(5.45mm) | 300mm |
| Product Code | Size | Colour Code | Tube OD (mm) | Length of Tube (mm) |
| MC-24SE0 | Neonatal/24H/Endotracheal | Grey | 5Fr(1.7mm) | 300mm |
| MC-24SE1 | Neonatal//24H/Endotracheal | Light Green | 6Fr(1.95mm) | 300mm |
| MC-24SE2 | Pediatric/24H/Endotracheal | Lvory | 7Fr(2.3mm) | 300mm |
| MC-24SE3 | Pediatric//24H/Endotracheal | Light Blue | 8Fr(2.7mm) | 300mm |
| MC-24SE4 | Adult/24H/Endotracheal | Black | 10Fr(3.35mm) | 600mm |
| MC-24SE5 | Adult/24H/Endotracheal | White | 12Fr(4.05mm) | 600mm |
| MC-24SE6 | Adult/24H/Endotracheal | Green | 14Fr(4.75mm) | 600mm |
| MC-24SE7 | Adult/24H/Endotracheal | Orange | 16Fr(5.45mm) | 600mm |
